Cessna 172 Skyhawk

Talk0
8pages on
this wiki

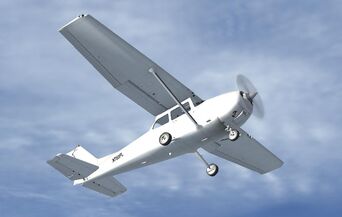

Pic1
Cessna 172
PyrgosAdded by Pyrgos

A stable and trustworthy plane, most pilots have logged at least a few hours in a Cessna 172, since it's the most widely available aircraft in the rental fleet, and is used by most flight schools. Since the first prototype was completed in 1955, more than 35,000 C172s have been produced, making it the world's most popular single-engine plane.  One of Cessna's first tricycle-gear airplanes, the 172 quickly became the favorite of a growing class of business pilots.  Its reliability and easy handling (along with thoughtful engineering and structural updates) have ensured its continued popularity for
decades.

Design and DevelopmentEdit

Measured by its longevity and popularity, the Cessna 172 is the most successful mass-produced light aircraft in history. The first production models were delivered in 1956. As of 2008, more than 43,000 had been built.The Skyhawk's main competitors have been the Beechcraft Musketeer and Grumman AA-5 series (neither in production), the Piper Cherokee, and, more recently, the Diamond DA40.

The Cessna 172 started life as a tricycle landing gear variant of the taildragger Cessna 170, with a basic level of standard equipment. In January 1955, the company had flown an improved variant of the Cessna 170, a Continental O-300-A-powered Cessna 170C with a larger elevator and more angular vertical tail.[1]Although the variant was tested and certified, Cessna decided to modify it with a tricycle landing gear, and the modified Cessna 170C flew again on 12 June 1955. To reduce the time and cost of certification, the type was added to the Cessna 170 type certificate as the Model 172.[2]Later, the 172 was given its own type certificate, 3A12. The 172 became an overnight sales success, and over 1,400 were built in 1956, its first full year of production.

Early 172s were similar in appearance to the 170s, with the same straight aft fuselage and tall gear legs, although the 172 had a straight vertical tail while the 170 had a rounded fin and rudder. Later 172 versions incorporated revised landing gear and the sweptback tail which is still in use today. The final aesthetic development, in the mid-1960s, was a lowered rear deck that allowed an aft window. Cessna advertised this added rear visibility as "Omni-Vision." This airframe configuration has remained almost unchanged since then, except for updates in avionics and engines, including the Garmin G1000 glass cockpit in 2005. Production had been halted in the mid-1980s, but was resumed in 1996 with the 160 hp (120 kW) Cessna 172R Skyhawk. This was supplemented in 1998 by the 180 hp (135 kW) Cessna 172S Skyhawk SP.

ModificationsEdit

The Cessna 172 may be modified via a wide array of Supplemental Type Certificates (STCs), including increased engine power and higher gross weights. Available STC engine modifications increase power from 180 to 210 hp (134 to 157 kW), add constant-speed propellers, or allow the use of automobile gasoline. Other modifications include additional fuel tank capacity in the wing tips, added baggage compartment tanks, added wheel pants to reduce drag, or enhanced landing and takeoff performance and safety with a STOL kit.

Operational HistoryEdit

On December 4, 1958 Robert Timm and John Cook took off from McCarran Airfield in Las Vegas, NV in a newly-built Cessna 172, registration number N9172B. Sixty-four days, 22 hours, 19 minutes and 5 seconds later, they landed back at McCarran Airfield on February 4, 1959. The flight was part of a fund-raising effort for the Damon Runyon Cancer Fund. Food and water were transferred by matching speeds with a chase car on a straight stretch of road in the desert, and hoisting the supplies aboard with a rope and bucket. Fuel was taken on by hoisting a hose from a fuel truck up to the aircraft, filling an auxiliary belly tank installed for the flight, pumping that fuel into the aircraft's regular tanks and then filling the belly tank again. The drivers steered while a second person matched speeds with the aircraft with his foot on the vehicle's accelerator pedal.

Engine oil was added by means of a tube from the cabin that was fitted to pass through the firewall. Only the pilot's seat was installed. The remaining space was used for a pad on which the relief pilot slept. The right cabin door was replaced with an easy-opening, accordion-type door to allow supplies and fuel to be hoisted aboard. Early in the flight, the engine-driven electric generator failed. A Champion wind-driven generator (turned by a small propeller) was hoisted aboard, taped to the wing support strut, and plugged into the cigarette lighter socket; it served as the aircraft's source of electricity for the rest of the flight. The pilots decided to end the marathon flight because with 1,558 hours of continuously running the engine during the record-setting flight, plus several hundred hours already on the engine beforehand (considerably in excess of its normal overhaul interval), the engine's power output had deteriorated to the point that they were barely able to climb away after refueling. The aircraft is on display in the passenger terminal at McCarran International Airport. Photos and details of the record flight can be seen in a small museum on the upper level of the baggage claim area.[3]After the flight, Cook said: “Next time I feel in the mood to fly endurance, I'm going to lock myself in our garbage can with the vacuum cleaner running. That is, until my psychiatrist opens up for business in the morning.”

VariantsEdit

Blue and Gold - A Cessna 172 with blue and gold colors
BG
Blue and Gold Cessna
PyrgosAdded by Pyrgos





Orange and Black - A Cessna 172 with orange and black colors
BO
Black and Orange Cessna
PyrgosAdded by Pyrgos





Used Trainer - A Cessna 172 that has been used for training purposes
Used Trainer
Used Trainer Cessna
PyrgosAdded by Pyrgos




Military OperatorsEdit

A variant of the 172, the T-41 Mescalero was used as a trainer with the United States Air Force and Army. In addition, the United States Border Patrol uses a fleet of 172s for aerial surveillance along the Mexico-US border.

The Irish Air Corps uses the Reims version for aerial surveillance and monitoring of cash, prisoner and explosive escorts, in addition to army co-operation and pilot training roles. The type is popular and successful in service despite some accidents. Air Corps examples are painted dark green and carry the service roundels. Most are not fitted with the distinctive wheel spats.

 Austria
 Bolivia
 Chile
 Ecuador
 Guatemala
 Honduras
 Iraq
 Ireland
 Liberia

 Lithuania

 Madagascar
 Pakistan
 Philippines
 Saudi Arabia
 Singapore

Accidents and incidentsEdit

SpecificationsEdit

Maximum Speed  - 126 kts (203 km/hr)


Cruise Speed - 124 kts (200 km/hr)


Engine - Textron Lycoming IO-360-L2A 180 bhp
IP
Cessna 172 Instrument Panel
PyrgosAdded by Pyrgos


Propeller - Two-Bladed Macauley Fixed Pitch


Maximum Range - 638 nm (734 mi, 1181 km)


Service Ceiling - 14,000 ft (4267 m)


Fuel Capacity - 56 gal (212 L)


Empty Weight - 1,665 lb (1,002 kg)


Maximum Gross Weight - 2,550 lb (1,157 kg)


Length - 27 ft, 2 in (8.2 m)


Wingspan - 36 ft, 1 in (11 m)


Height - 8 ft, 11 in (2.72 m)


Seating - 4


Useful Load -  893 lb (405 kg)
